Baja Designs S2 Pro Dual Fog Pocket Light Kit

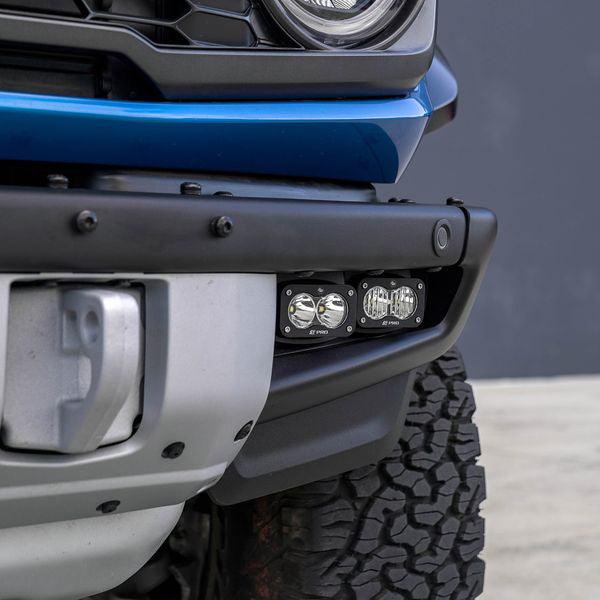

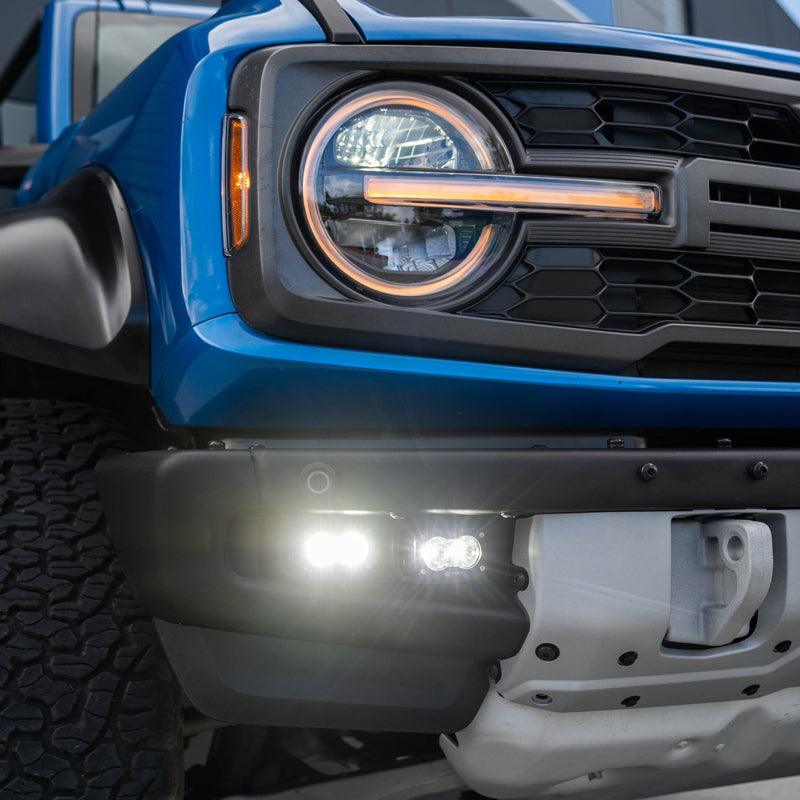

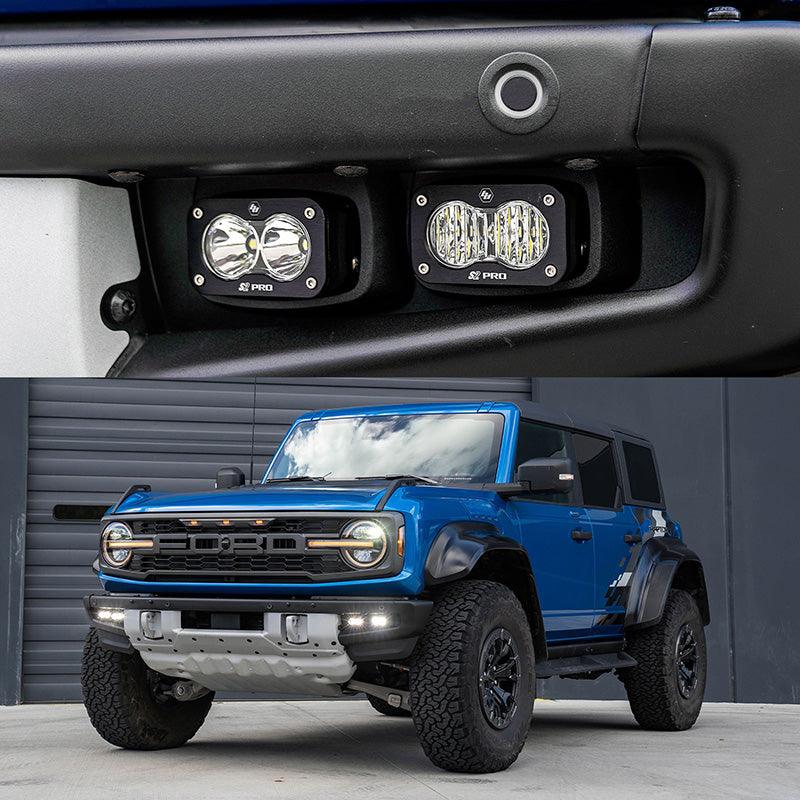

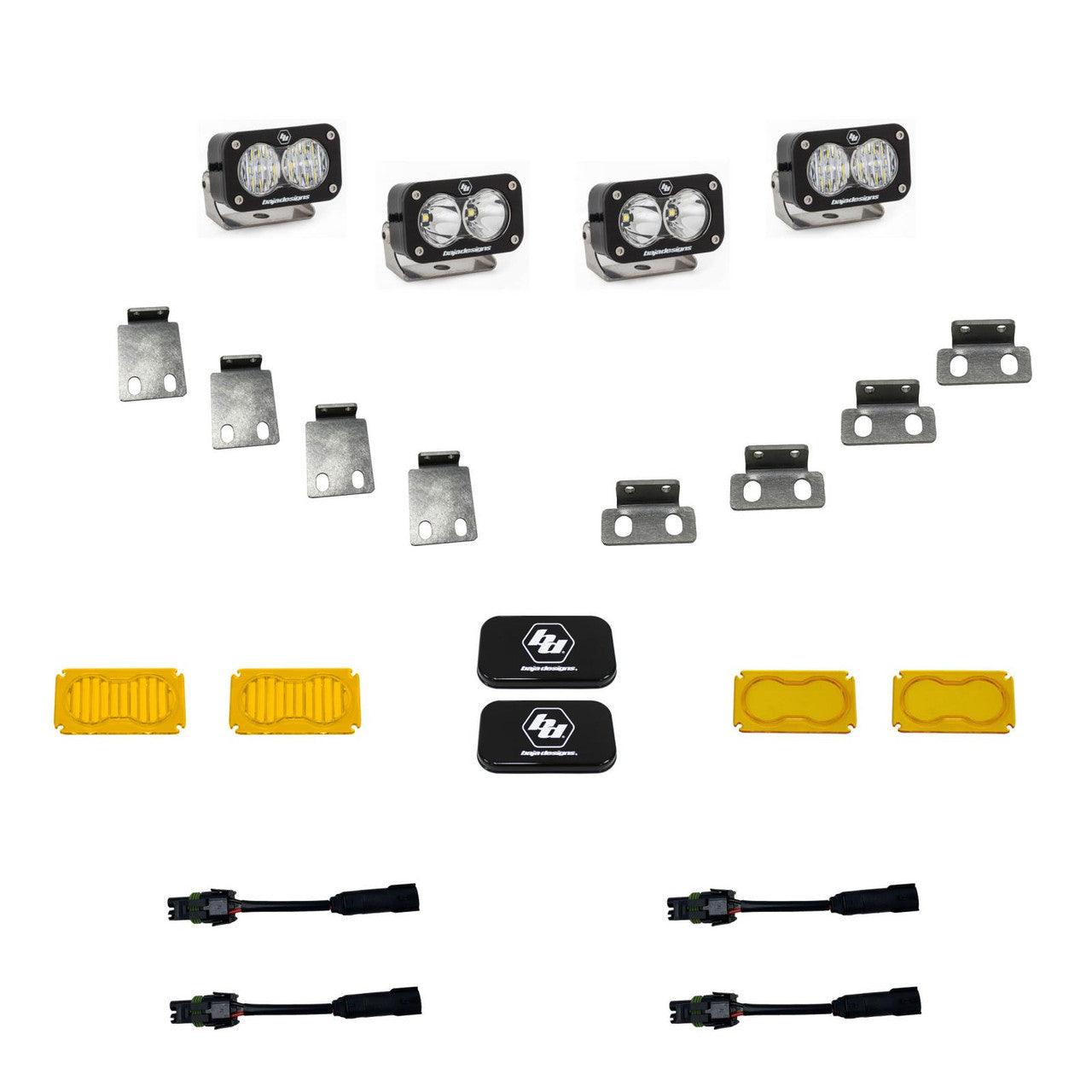

The Ford Bronco Raptor is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes two pairs of S2 Pro LED auxiliary lights in both Spot and Wide Cornering configuration. The accessories included in this kit are plug and play style adapters, four black S2 rock guards, S2 amber lenses and fog light brackets.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Installation Guide:
California Residents: Prop 65, WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

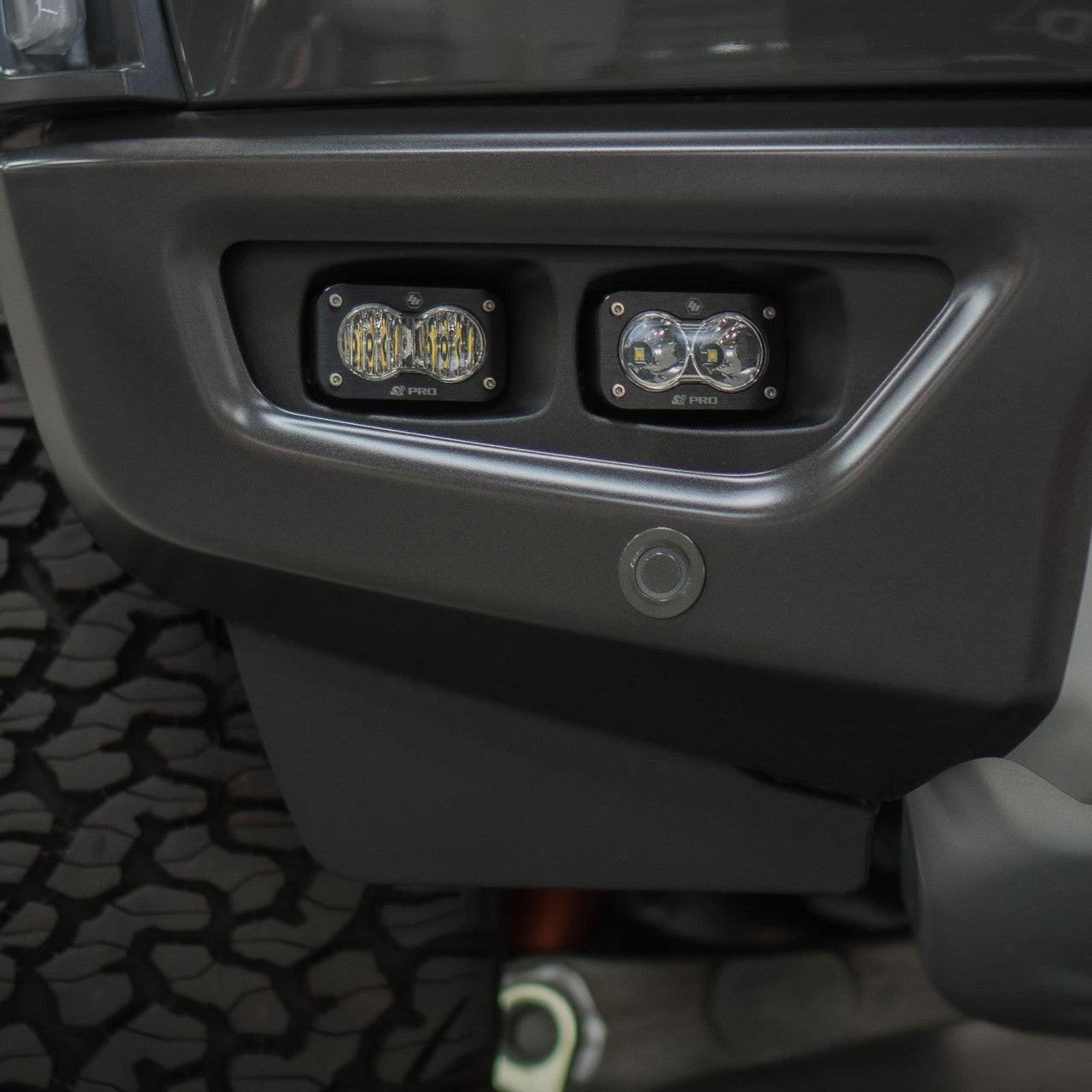

Ford F-150 Raptor 2021-2023
Ford Bronco Raptor 2022-2023
INCLUDED WITH KIT:
SKU: 480001
Dimensions
| Depth (in.) |
1.680 |
| Height (in.) |
1.760 |
| Length (in.) |
2.930 |
| Weight (lbs.) |
0.500 |
Specifications
| Amperage Rating (A) |
1.700 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2245 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
2 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S2 Pro LED Light Pod |
| Wattage (W) |
23.460 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 480005
Dimensions
| Depth (in.) |
1.680 |
| Height (in.) |
1.760 |
| Length (in.) |
2.930 |
| Weight (lbs.) |
0.500 |
Specifications
| Amperage Rating (A) |
1.700 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Wide Cornering |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2245 |
| Description |
Wide Cornering; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
2 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S2 Pro LED Light Pod |
| Wattage (W) |
23.460 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
