Earn 2,600 Points when you buy this item.

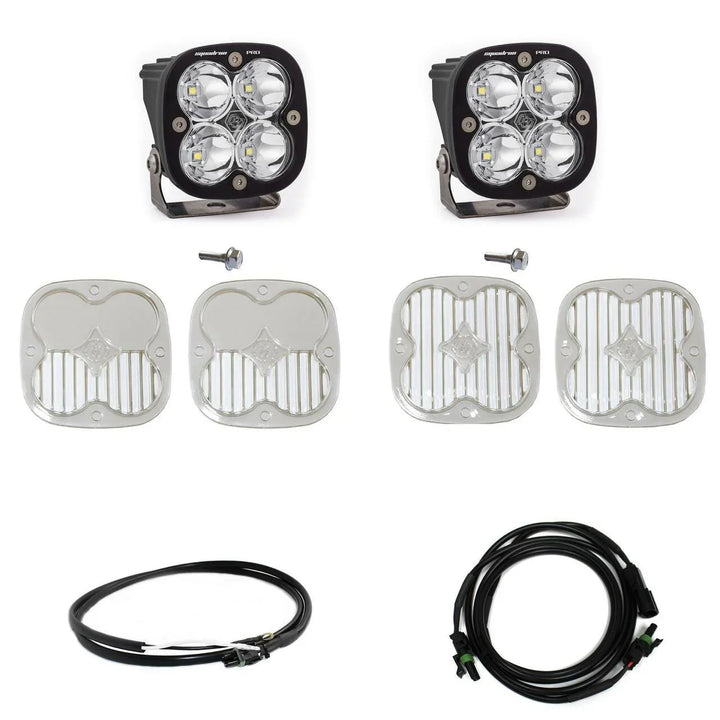

The Baja Designs Squadron Pro A-Pillar Light Kit delivers legendary Squadron lights to your Bronco so you can charge into the night. This kit includes a pair of Squadron Pro LED auxiliary lights in spot, along with a set of wide cornering, and driving/combo lenses in case you want to change to a more near-field pattern.
Included with this kit is an upfitter harness and all necessary hardware. Installation is a breeze, no cutting or drilling needed!
Installation Guide:
California Residents: Prop 65, WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
| Product Type | Squadron Pro LED Light Pod |
| Description | Spot; Clear |
| Beam Pattern | Spot |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 4,600 |
| Wattage (W) | 40 |
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
