KC HiLiTES FLEX ERA 3 Dual Mode SAE Fog Light Pocket Kit - 2021+ Bronco w/ Modular HD Bumper
Low Stock. Only 4 left.
€1.167,95 EUR
Earn 6,502 Points when you buy this item.
Low Stock. Only 4 left.
Earn 6,502 Points when you buy this item.

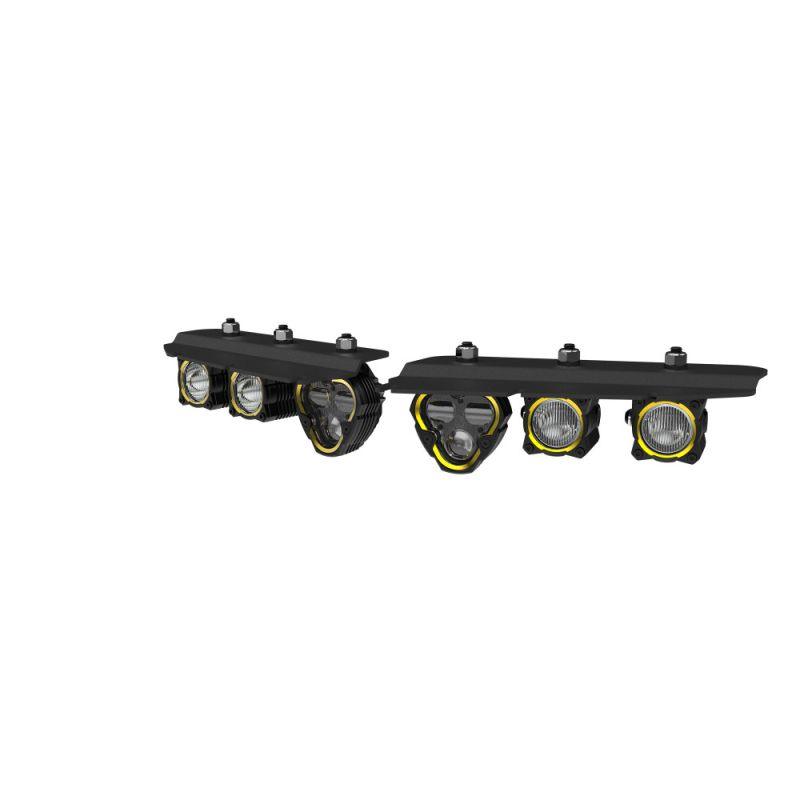

Featuring a combination of on- and off-road lights, the KC HiLiTES Fog Pocket Kit for 2021+ Ford Broncos features one pair of FLEX ERA® 3 Dual Mode SAE Fog Lights and two pairs of FLEX ERA® 1 Master Kits. Complete with a Bronco-specific daisy-chained wiring harness to simplify the installation, this kit will take the nighttime performance of your Bronco to the next level.

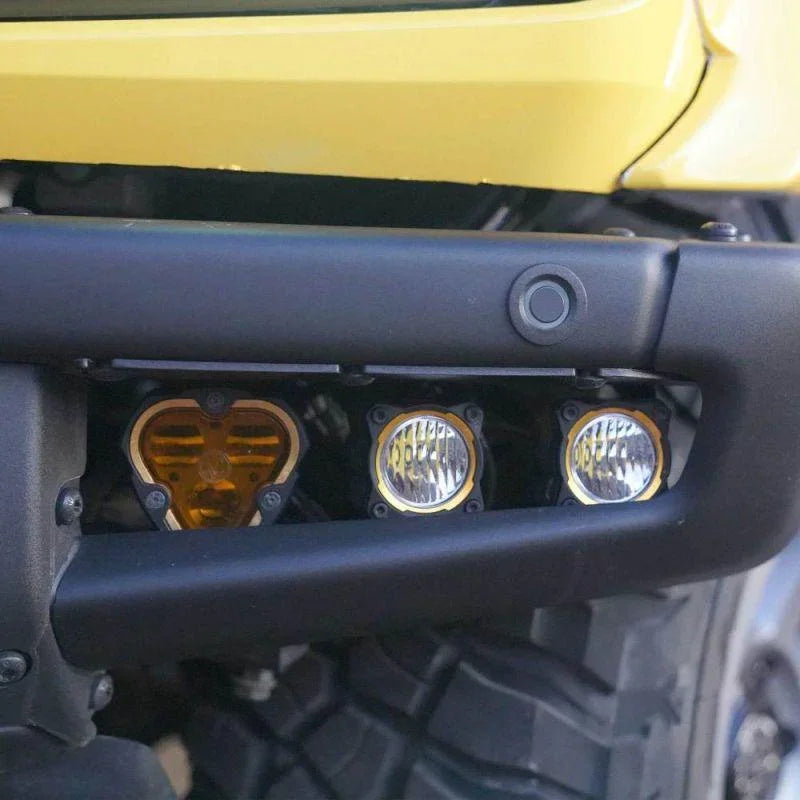

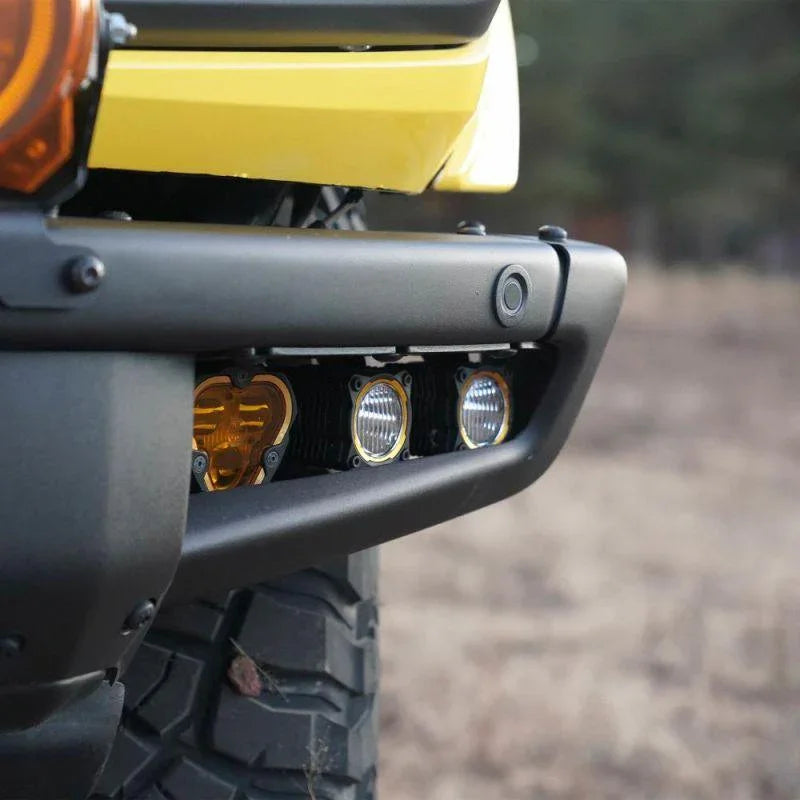

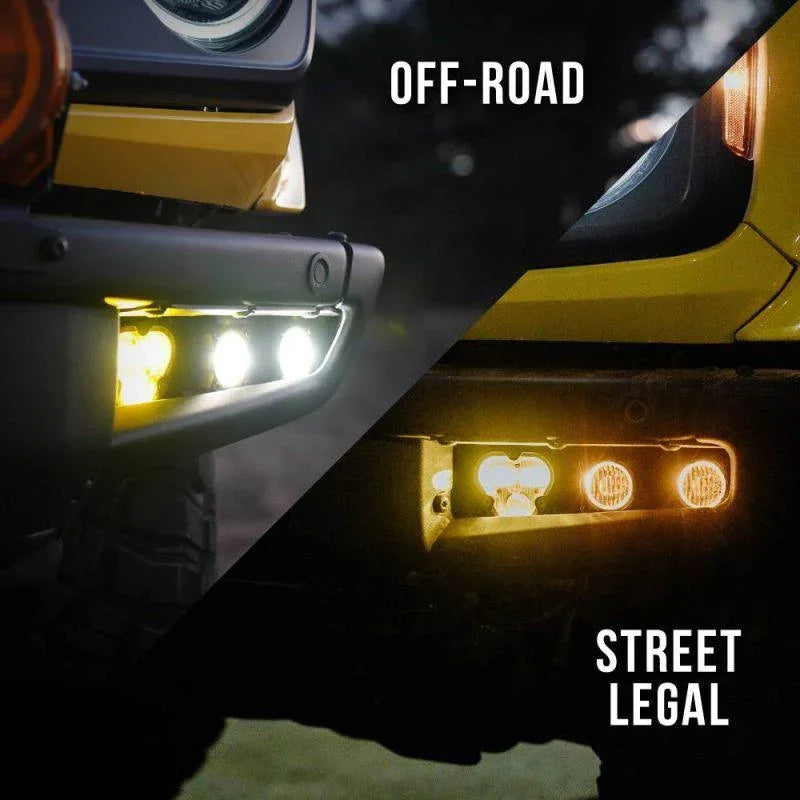

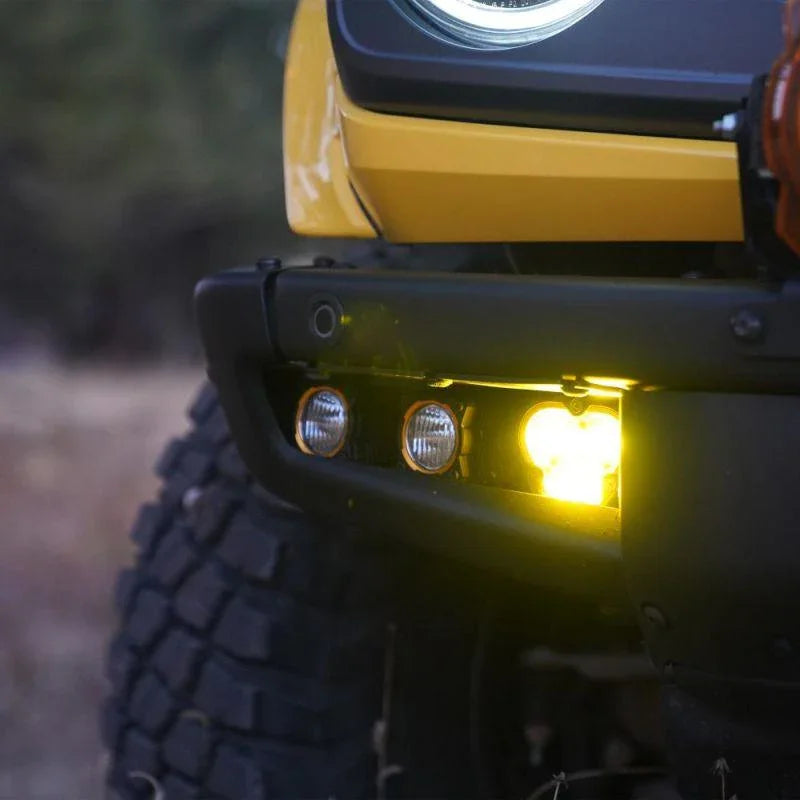

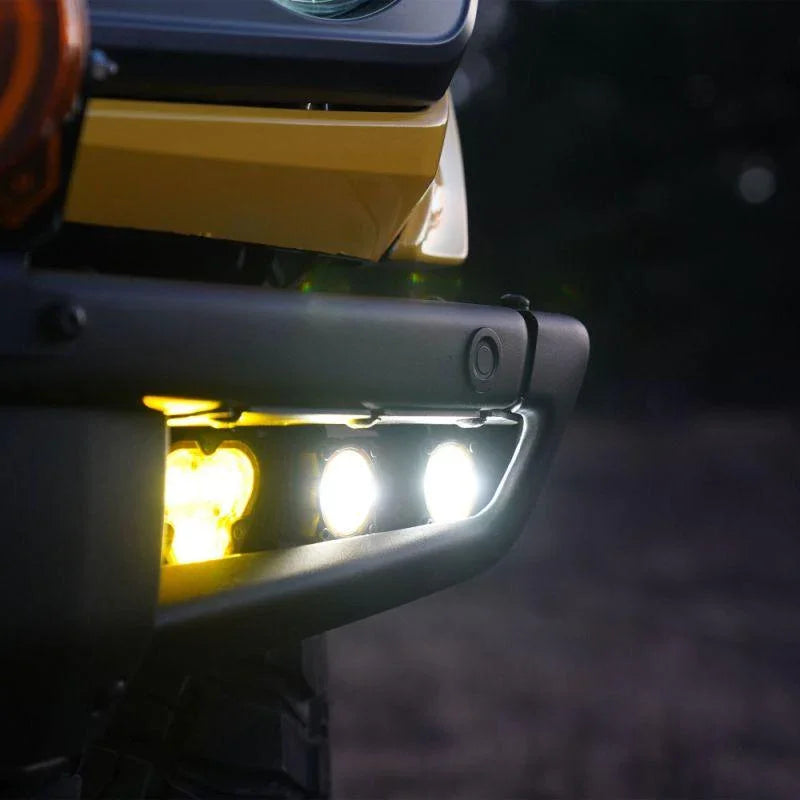

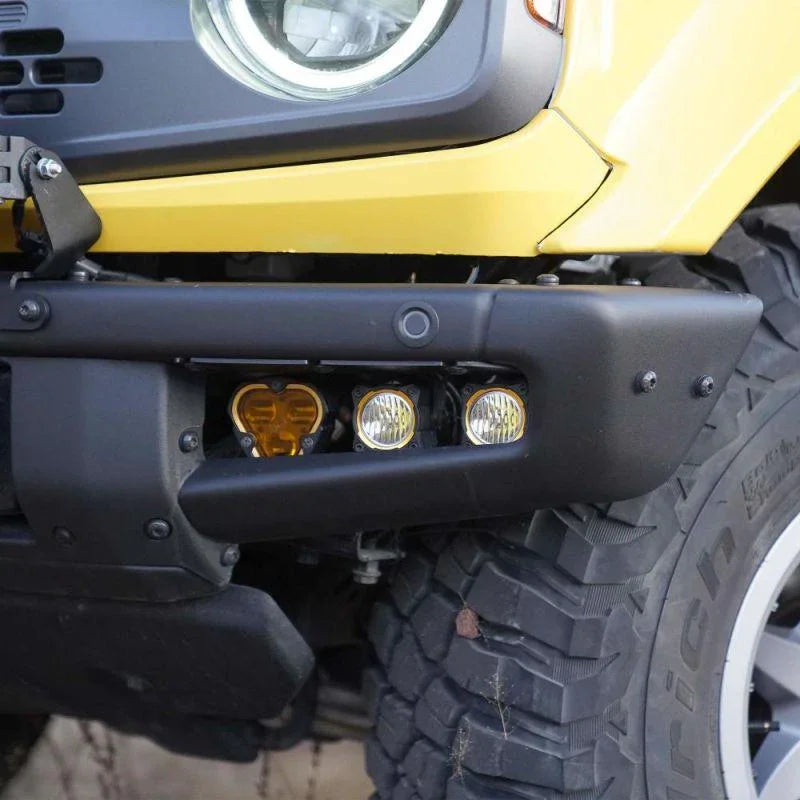

For the sleekest on-road and off-road lighting setup for a 2021+ Ford Bronco, the factory fog pocket location in the steel bumper is the only way to go. The Ford Bronco Fog Pocket Light Kit from KC features an array of street-legal fog lights for the pavement and high-power off-road lighting to use while tackling the trails. The kit includes everything needed, from mounting brackets to wiring harnesses, changeable beam pattern lenses, and more. With the included harnesses, you can switch between street-legal fog lights and offroad lights with ease using your factory-equipped Upfitter switches.
FEATURES
SPECIFICATIONS (per light)
FLEX ERA® 3 Dual Mode SAE Fog Light
-Lumens: 3,682 lm / 5,949 lm
-Lux: 94.4 lx / 199.8 lx
-Candela: 9,440 cd / 19,984 cd
-Wattage: 35W / 55 W
-Amp Draw: 2.9 a / 4.5 a @ 12V
-Voltage: 9V-36V
-IP Rating: IP65
-Product Dimensions: W - 3.6" x H - 3.5" x D - 2.6"
FLEX ERA® 1
-Lumens: 2430 lm
-Lux: 45.1 lx flood / 162 lx spread / 310 lx spot
-Candela: 4510 cd flood / 16200 cd spread / 31000 cd spot
-Wattage: 5W / 23W
-Amp Draw: 0.44 a / 1.94 a
-Voltage: 9V-36V
-IP Rating: IP68
-Product Dimensions: W - 2.6" x H - 2.72" x D - 2.9"
SPECIFICATIONS (per power mode)
Street Mode (FE3 SAE Mode + FE1 Backlights)
-Lumens: 7,364 lm
-Wattage: 90W
-Amp Draw: 7.6 a
Off-Road Mode (FE3 and FE1 High Power Modes)
-Lumens: 21,618 lm
-Wattage: 202 W
-Amp Draw: 16.76 a

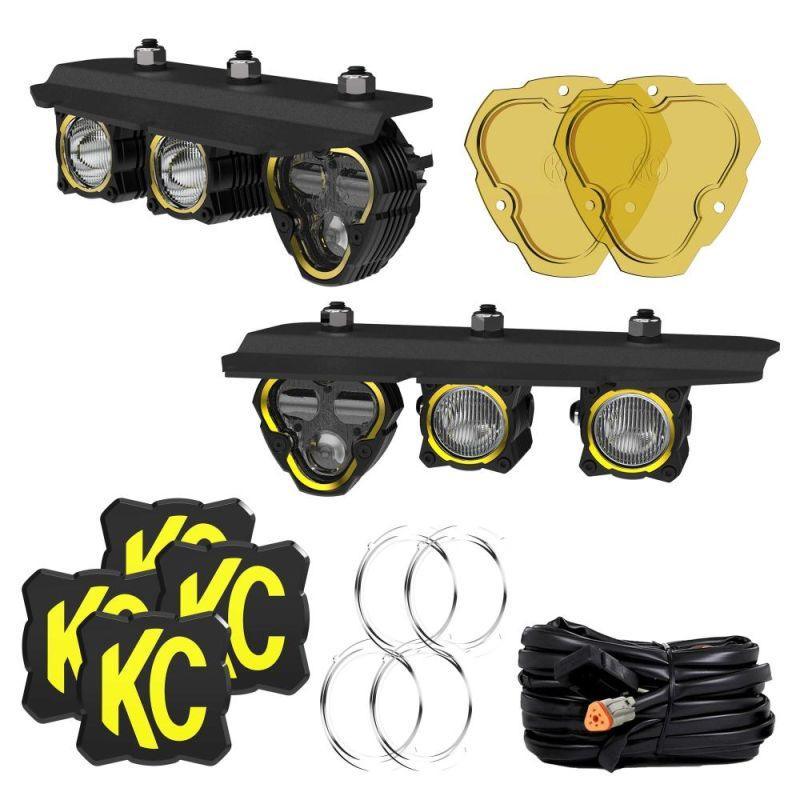

PARTS INCLUDED
-(2) FLEX ERA® 3 Dual Mode SAE Fog Lights
-(2) FLEX ERA® 1 Lights (Driver Side)
-(2) FLEX ERA® 1 Lights (Passenger Side)

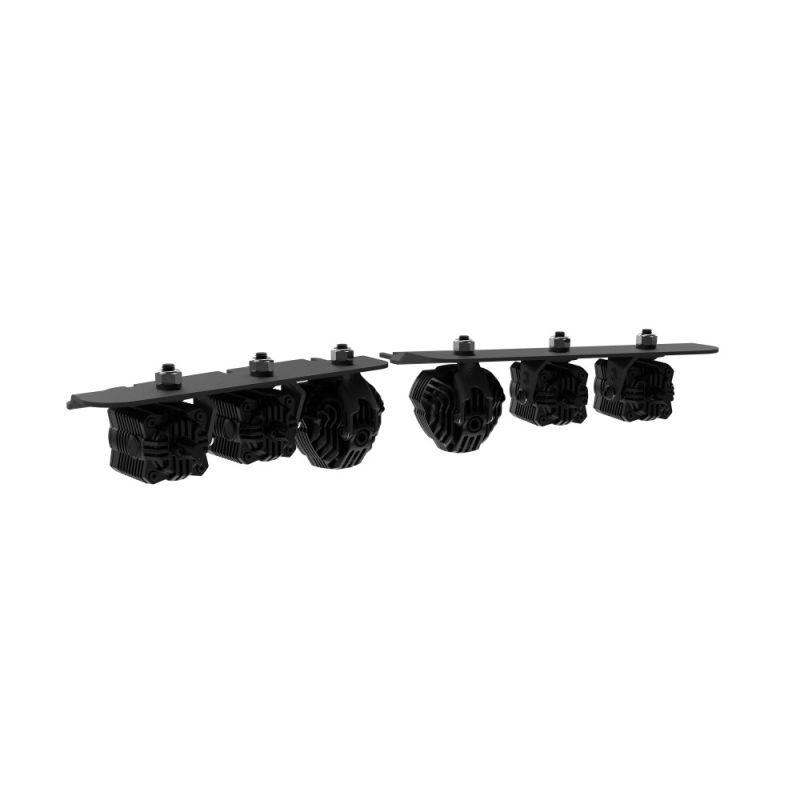

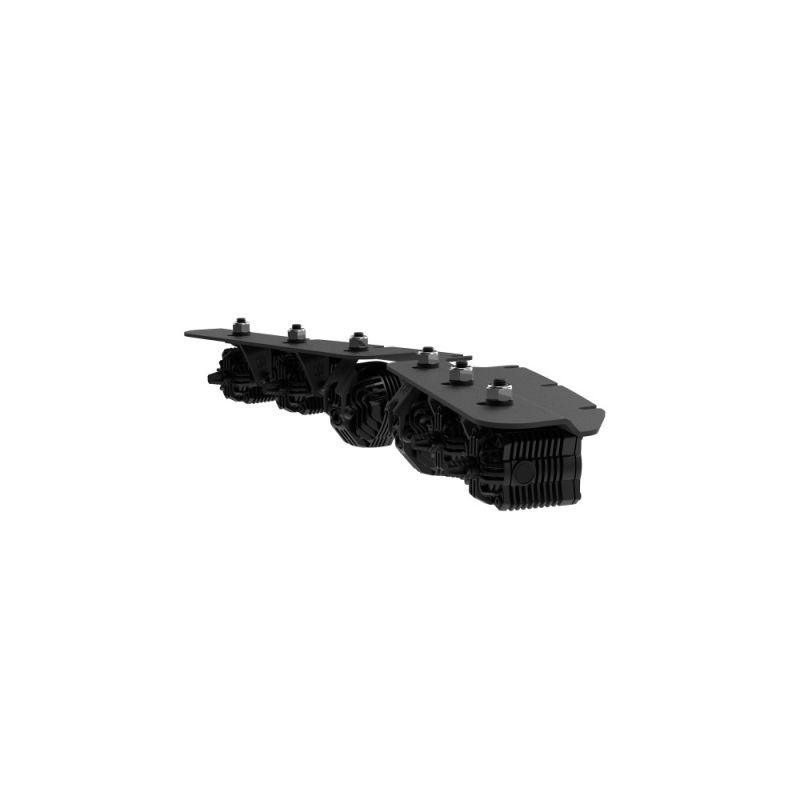

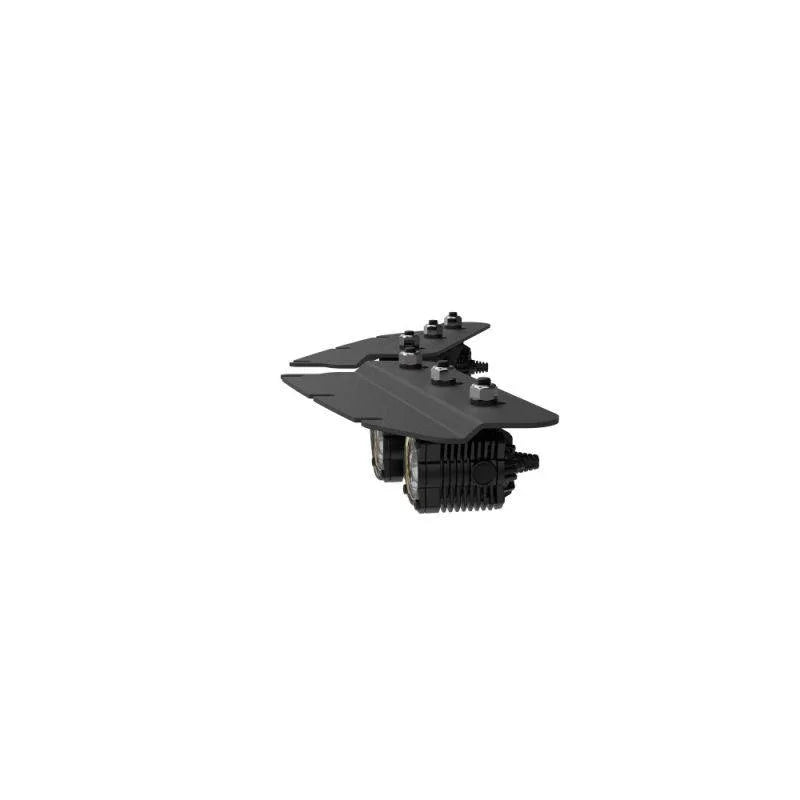

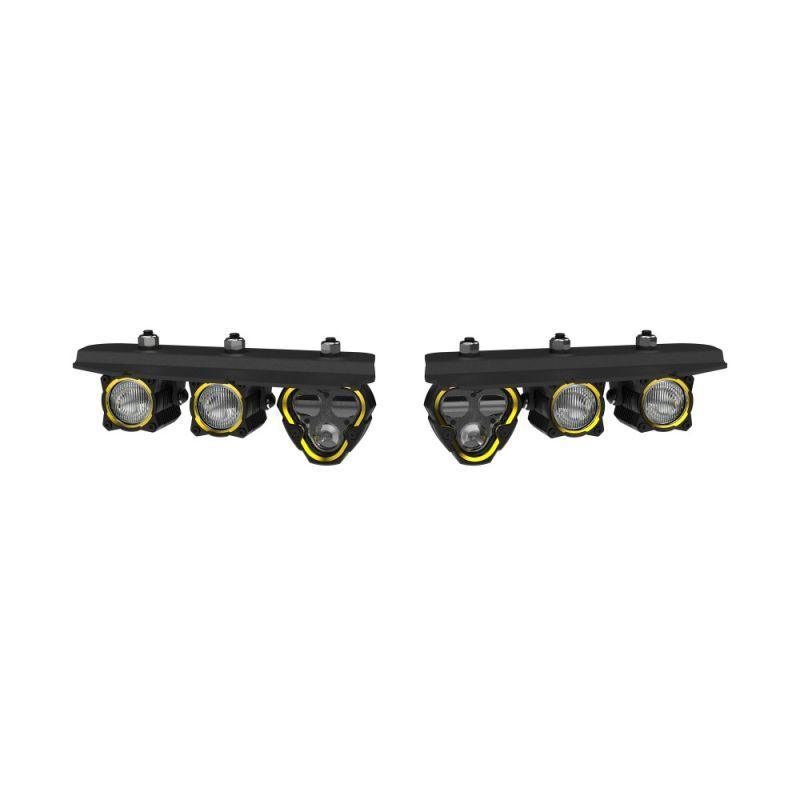

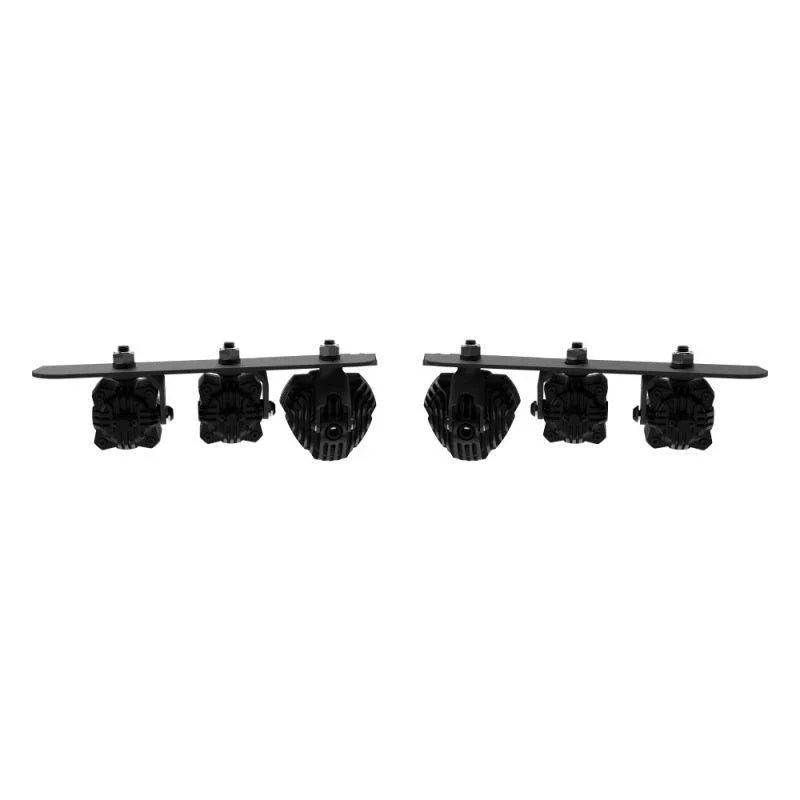

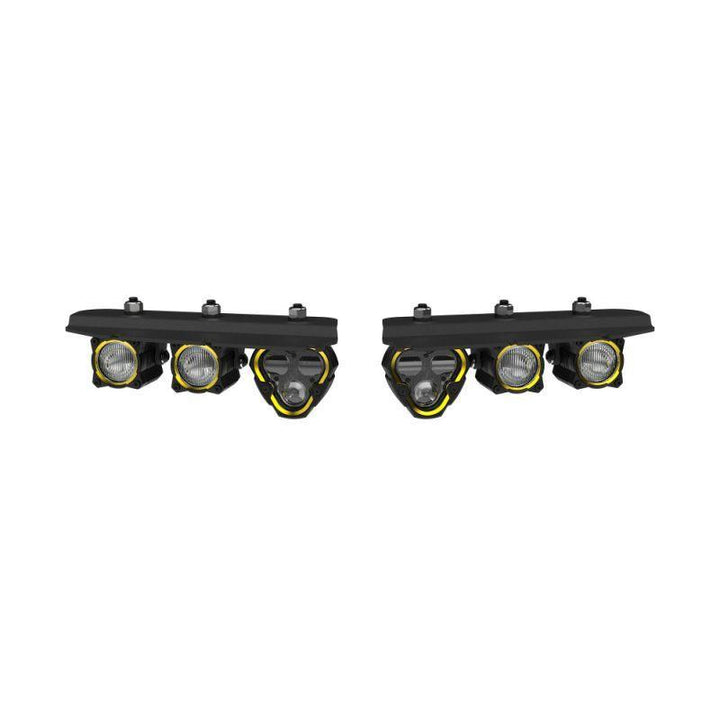

-(1) Fog Pocket Mounting Bracket Set (Driver and Passenger Side Brackets)
-(1) Complete Wiring Kit for Ford Upfitter Switches
-(2) Selective Yellow Lenses for FLEX ERA® 3 Dual Mode SAE Fog Lights
-(4) KC Black Covers for FLEX ERA® 1 Lights
-(4) Spot Lenses for FLEX ERA® 1 Lights
| SKU | 97168 |
|---|---|
| Weight | 18.000000 |
| Type | Fog Pocket |
| Family / Series | FLEX ERA |
| Product Dimensions | See Individual Light |
| Material | Aluminum Alloy |
| Finish | Black |
| Mount Location | Bumper, Fog |
| UPC | 084709971687 |
| Candela | See Individual Light |
| Color | Black |
| DOT Compliant | No |
| In The Box | 4 x KC FLEX ERA® 1 LED Light Spread Lens, 4 x Clear FE1 Spot Lens, 4 x FE1 KC Covers, 2 x KC FLEX ERA 3 DM SAE Lights, 2 x FE3 yellow Lenses, 2 x Mounting Brackets, Hardware, Wiring for Upfitter Switches |
| IP rating | IP68 |
| Beam Pattern | Combo What's this? |
| Beam Distance | See Individual Light |
| SAE/ECE | No |
| Light Color | White |
| Lens Color | Clear |
| Light Temperature | 5000K |
| Lumens | See Individual Light |
| Lux | See Individual Light |
| Wattage | See Individual Light |
| Voltage | 9V-32V |
| Amp Draw | See Individual Light |
| Prop 65 | No |
| Size | 3.5" |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2023 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2023 | Ford | Bronco | Big Bend |
| 2021-2023 | Ford | Bronco | Black Diamond |
| 2022-2023 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023 | Ford | Bronco | Heritage Edition |
| 2023 | Ford | Bronco | Heritage Limited Edition |
| 2021-2023 | Ford | Bronco | Outer Banks |
| 2022-2023 | Ford | Bronco | Raptor |
| 2021-2023 | Ford | Bronco | Wildtrak |
