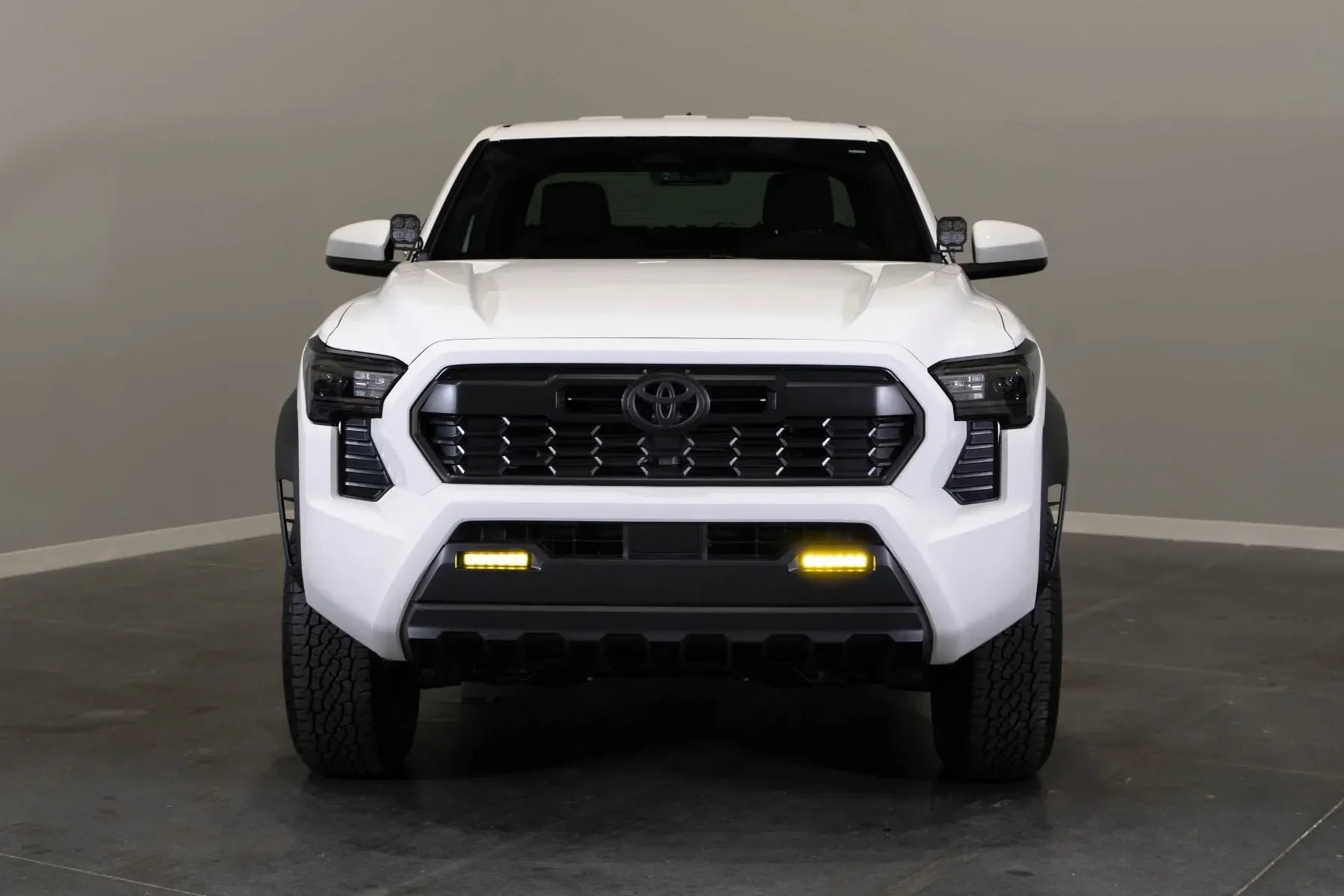

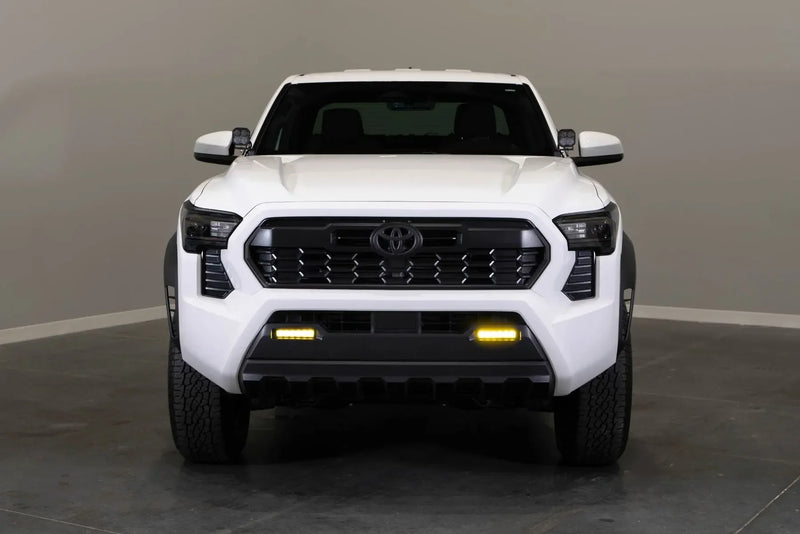

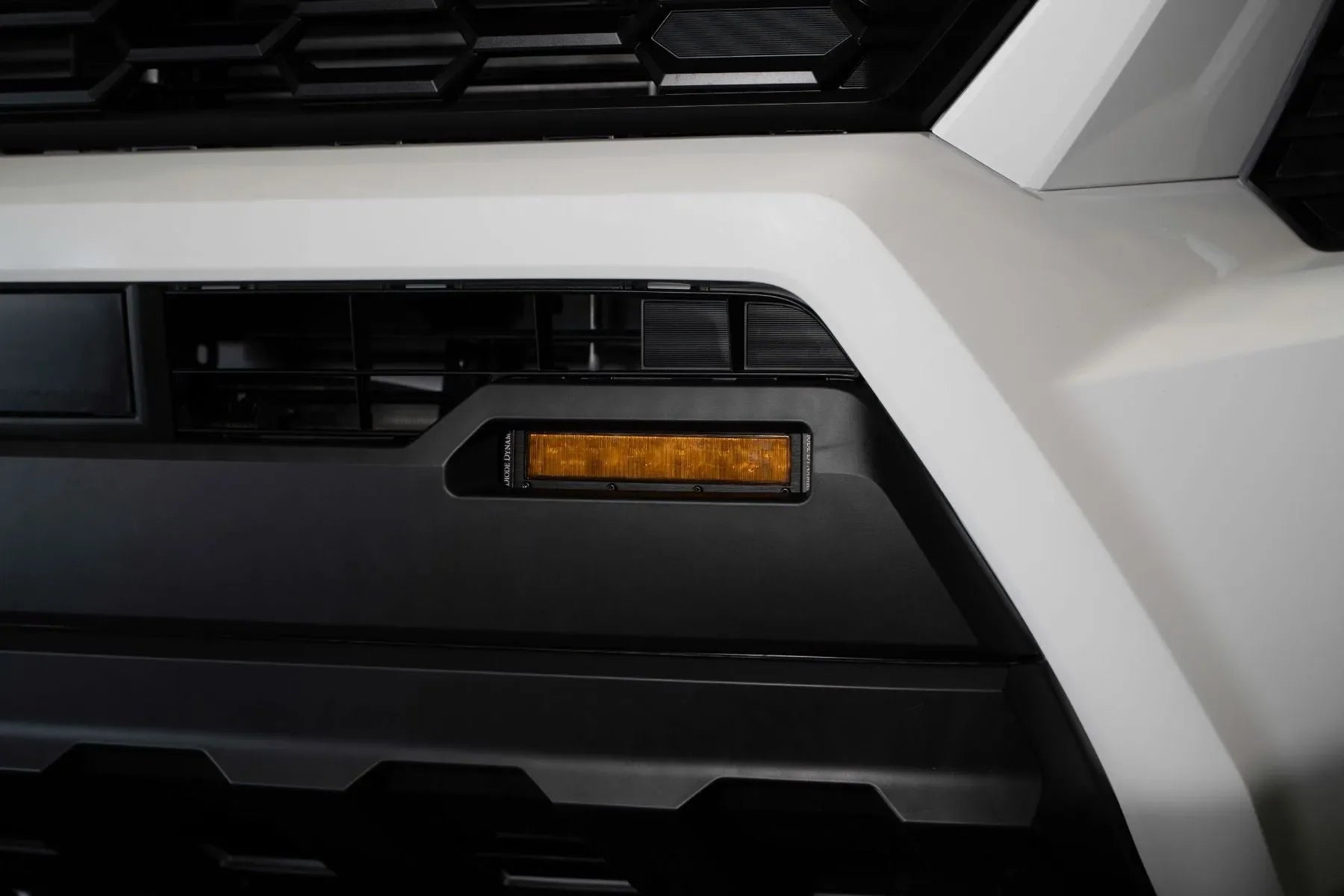

Perfect Fitment. The SAE LED Fog Light Kit for the 2024+ Toyota Tacoma from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. This kit isn't just for off road! It is legal for on-road use as fog lights (Please check your local laws and regulations for aiming, installation, and applicability). Wire adapters are included to connect the lights to your factory fog light connectors - no additional wiring needed!
Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The SAE Fog/Wide pattern pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle.

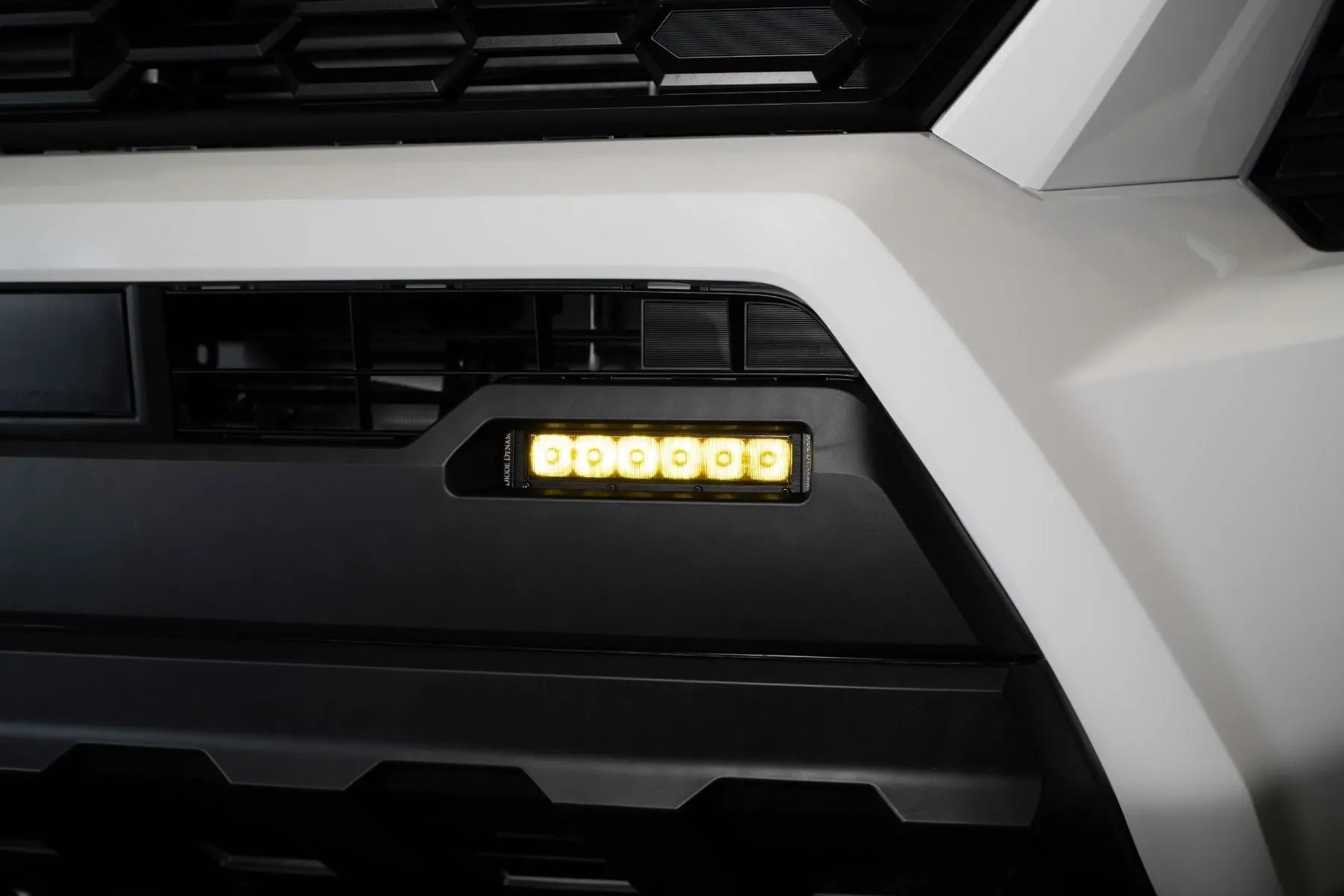

White or Amber. The Stage Series light bars included with this kit are available in a cool white or amber color. The white is a 6000K color temperature, which is a true white output, without any blue. The amber is a brilliant deep yellow color, perfect for hazards or high contrast in poor weather.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
NOTE: This kit is not compatible with the Trail Hunter trim or models equipped with Rigid Dual Color Fog Lights.
| Lens Color/Optics |
Peak Beam Intensity |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| White Wide | 13,000 cd | 130 lux | 1,400 lm | 2,280 lm | 6000K White |
| Amber Wide | 7,400 cd | 74 lux | 800 lm | 1,140 lm | 2000K Amber |
Installation Time: 1-2 hours
Tools Needed: Basic Toolset
Modification: Basic Wiring Only
8 Year Limited Warranty
In addition to their standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024 | Toyota | Tacoma | Limited |
| 2024 | Toyota | Tacoma | SR |
| 2024 | Toyota | Tacoma | SR5 |
| 2024 | Toyota | Tacoma | Trailhunter |
| 2024 | Toyota | Tacoma | TRD Off-Road |
| 2024 | Toyota | Tacoma | TRD PreRunner |
| 2024 | Toyota | Tacoma | TRD Pro |
| 2024 | Toyota | Tacoma | TRD Sport |
